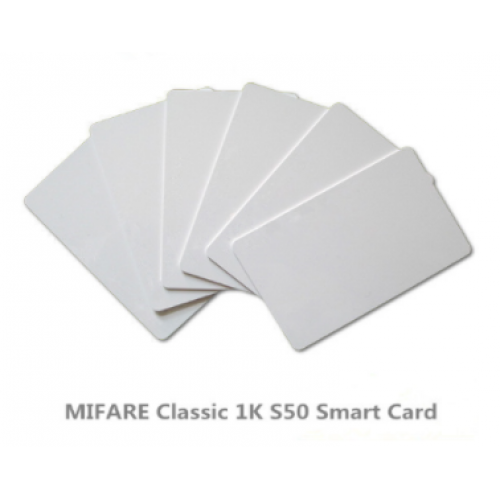

13.56MHz Classic 1K S50 Contactless Card

13.56MHz Classic 1K, otherwise known as MIFARE Standard 1K, operates at a frequency of 13.56 MHz and includes read/write capabilities and ISO/IEC14443 Type A compliance. MIFARE Classic is an ideal solution for many applications including transport, physical access, loyalty and cashless vending. Supplied as blank white printable ISO Standard PVC card. They are suitable for personalisation through all plastic card printers.

Specification

• Part number: Card-13.56MHz-NXP 1Kb

• Chip Type: 13.56MHz CLASSIC  1K (S50)

• Frequency:13.56MHz (Read & Write Capability)

• Protocol: ISO14443A

• Memory:1K Byte

• Operating distance: Up to 100mm

• Anticollision: Yes

• Colour: White

• Material: PVC

• Card Size: ISO Credit Card Size 86mm x54mm

• Card Thickness:0.80mm

• Packing:  200 cards per box

• EEPROM
  * 1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of 16 byte)
  * User definable access conditions for each memory block
  * Data retention of 10 years.
  * Write endurance 100.000 cycles
